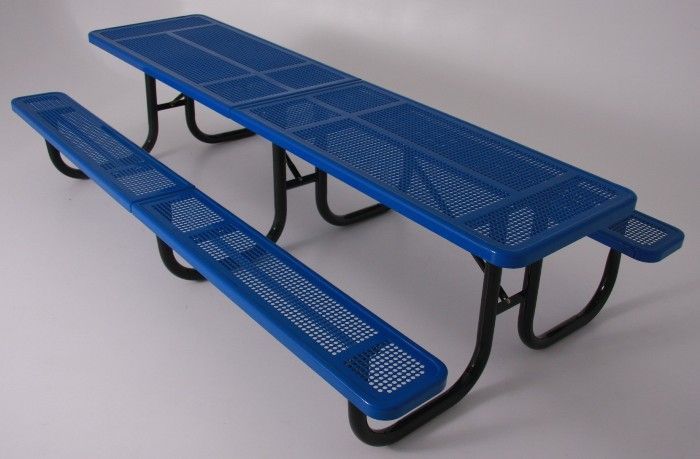

10' Thermoplastic Coated Picnic Table with Walk Through Design and Perforated Pattern Top and Seats

CODE:
OCC-238-3-P10

Heavy duty steel 10' picnic table with walk through design.

Read Full Description & Specs

Be the first to review this product Questions & Answers
List Price $2,987.00 You Save: $747.00 (25% Off MSRP) $2,240.00
  • Buy 5 for $2,128.00 each and save 5%
  • Buy 10 for $2,016.00 each and save 10%
  • Buy 25 for $1,904.00 each and save 15%
To get the best shipping quote, select options above and the quantity below, then click "Request A Quote".
Price: $2,240.00
View Quantity Discounts
  • Buy 5 for $2,128.00 each and save 5.00%
  • Buy 10 for $2,016.00 each and save 10.00%
  • Buy 25 for $1,904.00 each and save 15.00%
Add to Wish List Add to Compare

Bulk Shipping Inquiries

If you're buying in bulk or need a shipping quote for your business, submit for a quote instead:

OR
Call Us:317-223-8881

Description

OCC Outdoors Extra Heavy Duty 10’ shelter/Picnic Table with 3 Legs and Thermoplastic coated top and seats. The Oven-Fused polyethylene copolymer based fluidized thermoplastic coating has superior mechanical performance, impact resistance and UV-stability. The frame is electrostatically powder coated, oven cured.

The top and seats are 11 gauge die formed angle frame 1”x1-7/8” with 3” radius corners. Seat and tops are fabricated from a 12 ga. steel plate. Holes are precision punched at 5/8” diameter. 7 gauge x 1-1/2” flat bar center support and mounting bracket understructure all electrically MIG welded.

The frame is 2-3/8” O.D. x 12 gauge pre-galvanized structural steel tubing. Cross braces 1" O.D. x 16 gauge pre-galvanized structural steel tubing. The brace attachment points are 1-1/2”x1-1/2”x3/16” steel angle and the seat and top mounting points are 7 gauge x 1-1/2” die stamped steel flat bar. The legs are bent over a mandrel through the bend radius producing a wrinkle free bend. Holes are predrilled in legs for optional surface mounting. The entire frame is electrically MIG welded.

Features:

  • Thermoplastic finish top and seats have:
  1. Superior Adhesion
  2. Resistance to Cutting & Vandalism
  3. No Drips or Runs
  4. Smooth Finish Prevents Mold
  5. UV Protection
  6. Environmentally Friendly
  7. Available in 8 Colors
  • Powder Coated Frame:
  1. One of the Industry’s most Durable Protective Coatings
  2. Five Layers of Protection from harmful environmental elements with very little maintenance
  3. Available in 13 Colors
  4. 2-3/8" O.D. frame with 1" O.D. brace
  5. All MIG welded frame with walk-through design
  6. All stainless steel hardware
  7. Portable and/or surface mount
  8. Includes 2 sections and 3 legs for added support
  • Dimensions:
  1. Top: 30” wide x 120” long x 30-1/4” high.
  2. Seats:  12” wide x 120” long x 18-1/2” high
  3. Outside Dimension: 69” x 120”
  • Weight: 391 lbs.
  • Some Assembly Required
  • Made in the USA!!

Info & Guides

Specifications/Assembly Instructions ( OCC-238-3-P10_-_10_Heavy_Duty_Table_with_3_legs_Specifications_1.pdf,815.89 KB) [Download]

Instructions / Assembly

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

More Information
Shipping Weight (pounds) 471
Material Steel
