46" Round Picnic Table ADA Accessible Design with Thermoplastic Coated Steel Top and Seats

CODE:
OCC-358H-RDV

ADA Accessible Steel picnic table with thermoplastic coated perforated pattern or diamond  top and seats.

Read Full Description & Specs

List Price $1,825.00 You Save: $456.00 (25% Off MSRP) $1,369.00
  • Buy 5 for $1,300.55 each and save 5%
  • Buy 10 for $1,232.10 each and save 10%
  • Buy 25 for $1,163.65 each and save 15%
To get the best shipping quote, select options above and the quantity below, then click here:
Ordering more than 2? Click "Request A Quote" for the best shipping prices.
Price: $1,369.00
View Quantity Discounts
  • Buy 5 for $1,300.55 each and save 5.00%
  • Buy 10 for $1,232.10 each and save 10.00%
  • Buy 25 for $1,163.65 each and save 15.00%
Add to Wish List Add to Compare

Bulk Shipping Inquiries

If you're buying in bulk or need a shipping quote for your business, submit for a quote instead:

Description

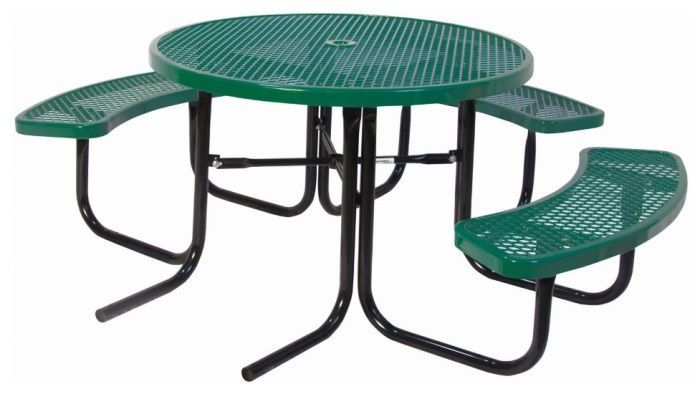

This OCC Outdoors 46" ADA Accessible round table has 3 seats allowing the 4th space to accommodate wheelchair seating. The top & seats are 11 gauge die-formed angle 1” x 1-7/8” frame with 3” radius corners on the seats and the top has a 1-15/8” umbrella pole opening.

The OCC-358-RDV tables have a 3/4” #9 diamond expanded metal pattern top and seats and the OCC-358H-RDP  top is 12 gauge steel precision punched with a 5/8" to create the perforated pattern. The top and seats are coated with oven fused functionalized  polyethylene copolymer-based thermoplastic fluidized bed coating with superior mechanical performance, impact resistance and UV-Stability.

The frame is 1-5/8" OD x 14 gauge pre-galvanized structural steel tubing and the cross braces are 1.029 O.D. x 15 gauge pre-galvanized structural steel tubing. The brace attachment points are 1-1/2” x 2” x 3/16” steel flat bar and the seat mounting points are 7 gauge x 1-1/2"die stamped steel flat bar. The legs are bent over a mandrel producing a wrinkle free bend. Holes are predrilled in the legs for optional surface mounting. The frame assembly is MIG welded and the frame coating is Electrostatic powder coated, oven cured

  • 46" round table with umbrella hole standard
  • Thermoplastic coated Top & Seats
  • Superior Adhesion
    • Resistance to Cutting and Vandalism
    • No Runs or Drips
    • Smooth Finish Prevents Mold
       and Mildew
    • Easily Repaired
    • UV Protection
    • Environmentally Friendly
  • 3-Seat Single-sided ADA accessible
  • 1-5/8" O.D. frame with 1-1/16" O.D. brace
  • All MIG welded frame with walk through design
  • Umbrella hole diameter 1-5/8" I.D.
  • All stainless steel hardware
  • Made in the USA
  • Dimensions and weight:

OCC-358H-RDV Diamond Pattern Table

  • Outside to Outside Dimensions: 82-1/4" x 70-3/4"
  • Top is 46" sdiameter and is 30” high
  • Seats: 12" Wide x 41" Long and 18-1/4" High.
  • Weight: 168#

OCC-358H-RDP Perforated Pattern 3 Seat Table

  • Outside to Outside Dimensions: 82-1/4" x 70-3/4"
  • Top is 46" diameter and is 30-1/4" high
  • Seats: 12" Wide x 40Long and 18-1/4" High.
  • Weight: 185#
  • Some Assembly Required

Made in the USA!!

Info & Guides

Specifications and Installation Instructions ( OCC-358H-RDV_Specifications_Installation_Instructions.pdf,1.1 MB) [Download]
Specifications and Installation Instructions ( OCCOutdoors_358H-RDP_Specifications_Installation_Instructions.pdf,1.09 MB) [Download]

Instructions / Assembly

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

More Information
Shipping Weight (pounds) 208
Shipping Width (inches) 48
Shipping Height (inches) 36
Shipping Length (inches) 48
Material Steel
Finish Thermoplastic Coated
