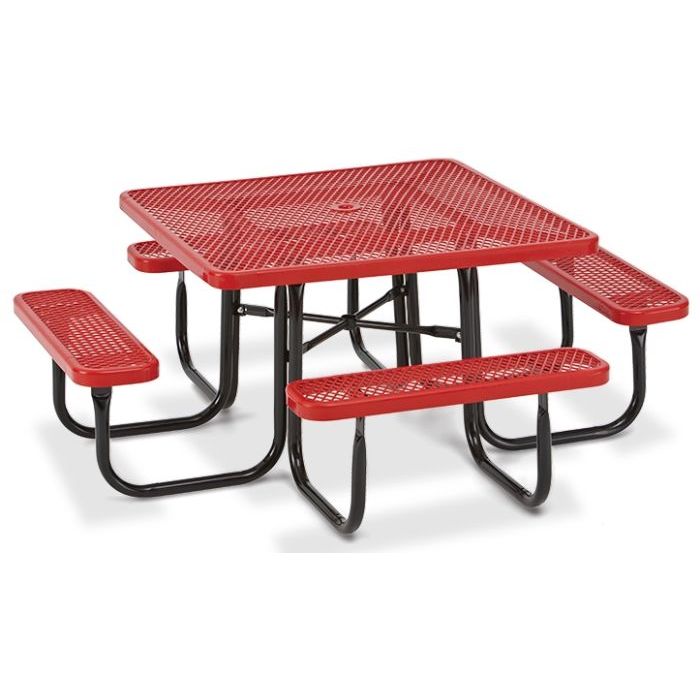

46" Square Picnic Table Walk Through Design with Thermoplastic Coated Steel

CODE:
OCC-358-V

Steel picnic table with walk through design and thermoplastic coated perforated pattern or diamond  top and seats.

Read Full Description & Specs

List Price $1,699.00 You Save: $425.00 (25% Off MSRP) $1,274.00
  • Buy 5 for $1,210.30 each and save 5%
  • Buy 10 for $1,146.60 each and save 10%
  • Buy 25 for $1,082.90 each and save 15%
To get the best shipping quote, select options above and the quantity below, then click here:
Ordering more than 2? Click "Request A Quote" for the best shipping prices.
Price: $1,274.00
View Quantity Discounts
  • Buy 5 for $1,210.30 each and save 5.00%
  • Buy 10 for $1,146.60 each and save 10.00%
  • Buy 25 for $1,082.90 each and save 15.00%
Add to Wish List Add to Compare

Bulk Shipping Inquiries

If you're buying in bulk or need a shipping quote for your business, submit for a quote instead:

Description

This OCC Outdoors 46" square table is made with a walk-through design. The top and seats have a 11 gauge die formed angle frame 1" x 1-7/8" with 3" radius corners.

The OCC-358-V table and seats are made from #9 expanded steel with 3/4" diamond pattern and the OCC-358-P table top and seats are die-formed 12 gauge sheet steel and are precision punched with a 5/8" holes to create the perforated patern.

Top and seats are coated with oven fused functionalized polyethylene copolymer-based thermoplastic fluidized bed coating with superior mechanical performance, impact resistance and UV-Stability. The frame is 1-5/8" OD x 14 gauge pre-galvanized structural steel tubing and the cross braces are 1.029 O.D. x 15 gauge pre-galvanized structural steel tubing. The brace attachment points are 1-1/2” x 2” x 3/16” steel flst bar and the sear mounting points are 7 gauge x 1-1/2"die stamped steel flat bar. The legs are bent over a mandrel producing a wrinkle free bend. Holes are predrilled in the legs for optional surface mounting. The frame assembly is MIG welded and the frame coating is Electrostatic powder coated, oven cured. All of the hardware fasteners are stainless steel.

 46" square table with umbrella hole standard

  • Thermoplastic coated Top & Seats
  •     Superior Adhesion
  •     Resistance to Cutting and Vandalism
  •     No Runs or Drips
  •     Smooth Finish Prevents Mold and Mildew
  •     Easily Repaired
  •     UV Protection
  •     Environmentally Friendly
  •     All MIG welded frame with walk through design
  •     Umbrella hole diameter 1-5/8" I.D.
  •     All stainless steel hardware
  •     Made in the USA

Dimensions and weight:

OCC-358-V Diamond Pattern Table

  • Outside to Outside Dimensions: 77-3/4" Squar
  • Top is 46" square and is 30” high
  • Seats: 12" Wide x 36" Long and 18-1/4" High.
  • Weight: 189#

OCC-358-P Perforated Pattern Table

  • Outside to Outside Dimensions: 77-3/4" Square
  • Top is 46" square and is 30” high
  • Seats: 12" Wide x 36" Long and 18-1/4" High.
  • Weight: 220#
  • Some Assembly Required

Made in the USA!!

Info & Guides

Specifications and Installation Instructions ( OCCOutdoors_358-V_Specifications_Installation_Instructions.pdf,1003.93 KB) [Download]
Specifications and Installation Instructions ( OCCOutdoors_358-P_Specifications_Installation_Instructions.pdf,1.19 MB) [Download]

Instructions / Assembly

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

More Information
Shipping Weight (pounds) 228
Shipping Width (inches) 48
Shipping Height (inches) 24
Shipping Length (inches) 52
Material Steel
Finish Thermoplastic Coated
