36-Gallon Steel Ash and Trash Receptacle with Ash Urn

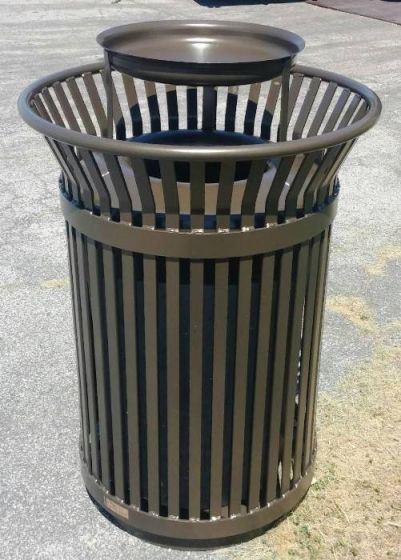

Product Specifications “Colonial” 36-gallon Steel Slat Ash and Trash Receptacle

• Product description

All steel heavy duty welded construction trash receptacle with galvanneal spun steel top with ash urn with two heavy stainless steel cable anchors and heavy duty rotary molded 36-gallon polyethylene liner and anchor kit. Paint with our Zinc Advantage paint system that includes rich primer and super TGIC Polyester paint. Manufactured in Indiana.

• Steel receptacle body

Overall size: 39” tall x 28 ½” top ring diameter plus ash urn top.
Main body 22 7/8” (two rings)
Slat diameter 22 3/8”
Slats ¼” x 1” flat steel
Gap between slats ¾”
Weight (weight is an average with options) 160 pounds

• Steel spun top

Diameter: 21 ½”
Opening: 11”
Material: 16 gauge galvanneal steel (Material thickness may vary during spinning operation)
Design; Centered funnel design to catch trash with the outer surface inclined to eliminate the 60% of precipitation.

• Recycle Plaques

Heavy Duty Laser Cut 18-gauge Stainless Steel Recycle Plaques are Available. See availability @ right.

• Liner

36-gallon round heavy rotary molded liner standard, approximately 1/8 thick wall with cut in hand grips and optional drain holes.

• Paint details

Step 1 Sand blast complete unit too shiny metal and clean.
Step 2 Hand clean and inspect.
Step 3 Powder coat with 70% zinc rich primer.
Step 4 Partial oven cure primer.
Step 5 Powder coat with super durable TGIC polyester final coat.
Step 6 Complete oven cure final coat.

•
• Anchors

Predrilled anchor holes
3/8” zinc plated anchor bolt and lead anchor
3/8” zinc plated flat washer.

• Warranty

Frame
Limited twenty-year warranty against structural failure.

Paint
Limited one-year warranty against failure of all TGIC polyester painted surfaces.
